Deep Dive: Solar CUF Statistical Analysis
This page presents a statistical deep dive into a representative solar capacity utilisation factor (CUF) profile. The analysis is based on a reduced-form 288-hour structure (12 months × 24 hours), constructed to illustrate seasonal and diurnal availability patterns.
The objective is to demonstrate analytical capability rather than produce forecasts. No user inputs are involved, and all results are deterministic.
Overall CUF Characteristics
| Metric | Value |
|---|---|
| Mean CUF (%) | 22.0 |
| Median CUF (%) | 0.0 |
| Min CUF (%) | 0.0 |
| Max CUF (%) | 82.15 |
| Std Dev (%) | 28.65 |
| Coeff of Variation | 1.3 |
Month-wise CUF Statistics
| Period | Mean CUF (%) | Min CUF (%) | Max CUF (%) | Hourly Std Dev (%) |
|---|---|---|---|---|
| M1 | 20.31 | 0.0 | 75.31 | 28.96 |
| M2 | 23.29 | 0.0 | 82.15 | 31.93 |
| M3 | 25.16 | 0.0 | 80.75 | 32.65 |
| M4 | 24.74 | 0.0 | 80.56 | 31.62 |
| M5 | 23.73 | 0.0 | 76.65 | 29.95 |
| M6 | 22.08 | 0.0 | 69.96 | 27.32 |
| M7 | 19.2 | 0.0 | 61.58 | 23.79 |
| M8 | 19.46 | 0.0 | 65.52 | 24.77 |
| M9 | 22.7 | 0.0 | 77.58 | 29.59 |
| M10 | 22.3 | 0.0 | 75.35 | 30.16 |
| M11 | 21.34 | 0.0 | 76.22 | 29.87 |
| M12 | 19.75 | 0.0 | 72.74 | 28.4 |
Hour-wise CUF Statistics
| Mean CUF (%) | Min CUF (%) | Max CUF (%) | Std Dev (%) | |
|---|---|---|---|---|
| H0 | 0.0 | 0.0 | 0.0 | 0.0 |
| H1 | 0.0 | 0.0 | 0.0 | 0.0 |
| H2 | 0.0 | 0.0 | 0.0 | 0.0 |
| H3 | 0.0 | 0.0 | 0.0 | 0.0 |
| H4 | 0.0 | 0.0 | 0.0 | 0.0 |
| H5 | 0.0 | 0.0 | 0.0 | 0.0 |
| H6 | 1.57 | 0.0 | 5.29 | 2.03 |
| H7 | 14.2 | 0.22 | 22.8 | 7.99 |
| H8 | 37.98 | 29.1 | 45.12 | 5.55 |
| H9 | 55.97 | 46.3 | 61.96 | 5.14 |
| H10 | 68.13 | 55.34 | 75.64 | 6.1 |
| H11 | 73.45 | 60.12 | 80.56 | 6.82 |
| H12 | 73.87 | 61.09 | 82.15 | 6.18 |
| H13 | 67.96 | 55.08 | 78.25 | 7.14 |
| H14 | 58.56 | 48.54 | 68.99 | 6.22 |
| H15 | 44.0 | 38.1 | 55.26 | 5.72 |
| H16 | 24.93 | 15.25 | 33.99 | 5.78 |
| H17 | 7.06 | 0.0 | 12.95 | 5.18 |
| H18 | 0.45 | 0.0 | 2.07 | 0.79 |
| H19 | 0.0 | 0.0 | 0.0 | 0.0 |
| H20 | 0.0 | 0.0 | 0.0 | 0.0 |
| H21 | 0.0 | 0.0 | 0.0 | 0.0 |
| H22 | 0.0 | 0.0 | 0.0 | 0.0 |
| H23 | 0.0 | 0.0 | 0.0 | 0.0 |
Intra-day CUF Variability (Ratio)
Unlike wind generation, solar CUF includes extended night-time periods with zero availability. As a result, ratio-based intra-day variability metrics involve division by zero and therefore evaluate to infinity, and are not reported.
Key Visualisations

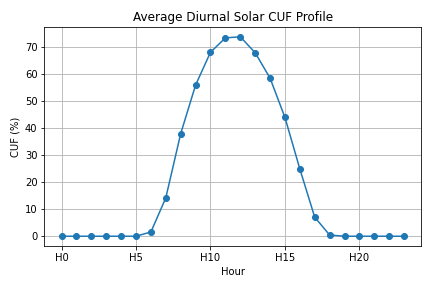

Average Diurnal Solar CUF Profile

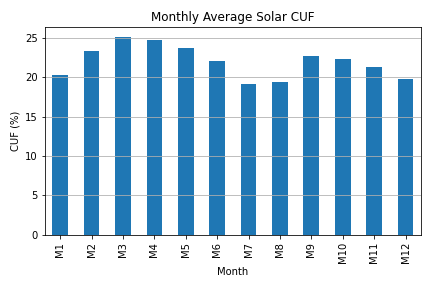

Monthly Average Solar CUF
Our commercial modelling framework uses full 8760-hour solar CUF profiles to capture hour-by-hour variability across the year.
